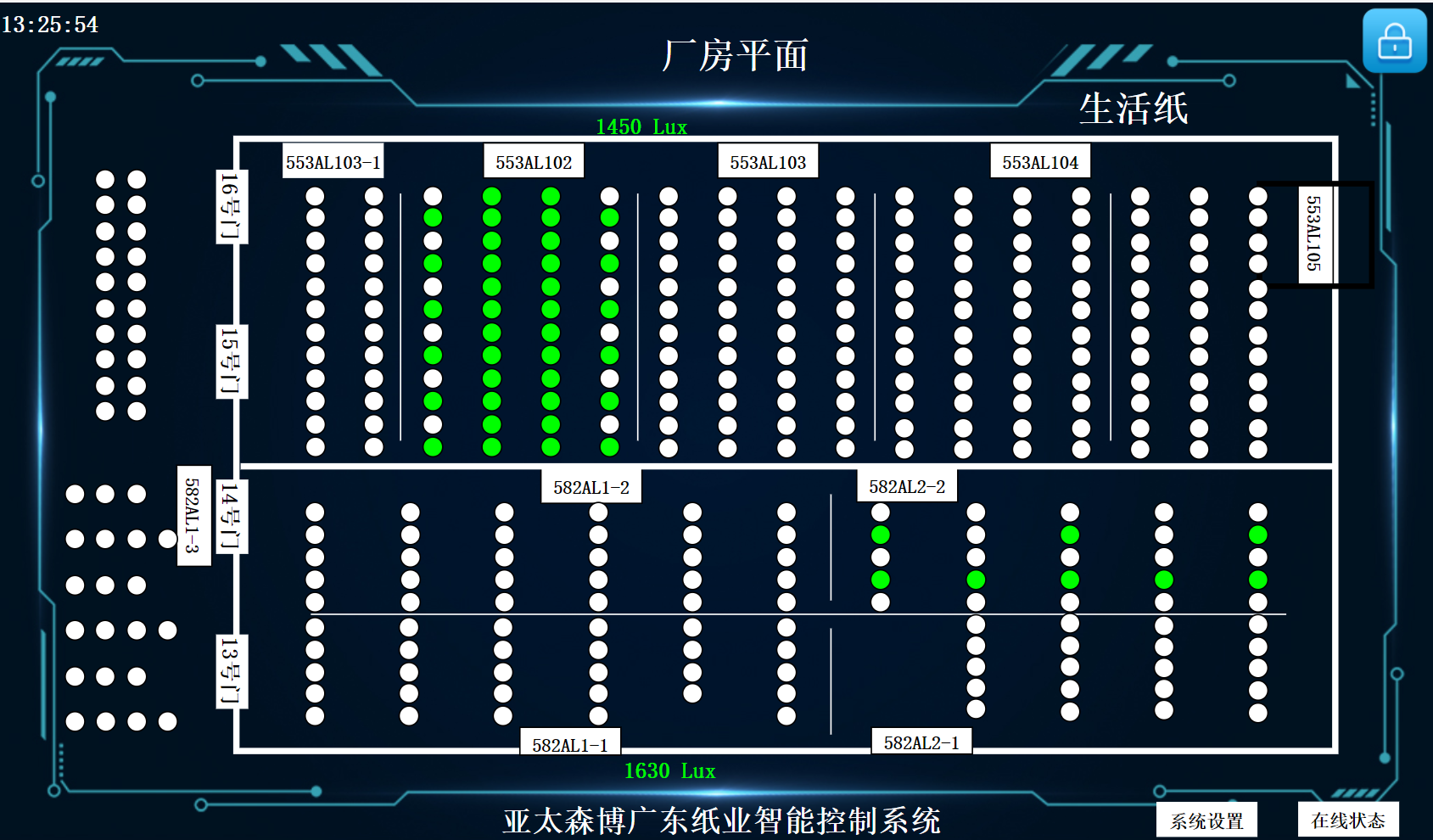

Note: For example, the 553AL102 distribution box, with 4 columns of indicator lights in the box, represents 4 12-channel intelligent lighting switch modules, green represents the open state, and white represents the off state. The base map is the floor plan of the workshop, and users can know the lighting status of any area of the workshop through this interface. If you click on the box number 553AL103-1, you will enter the interface below.

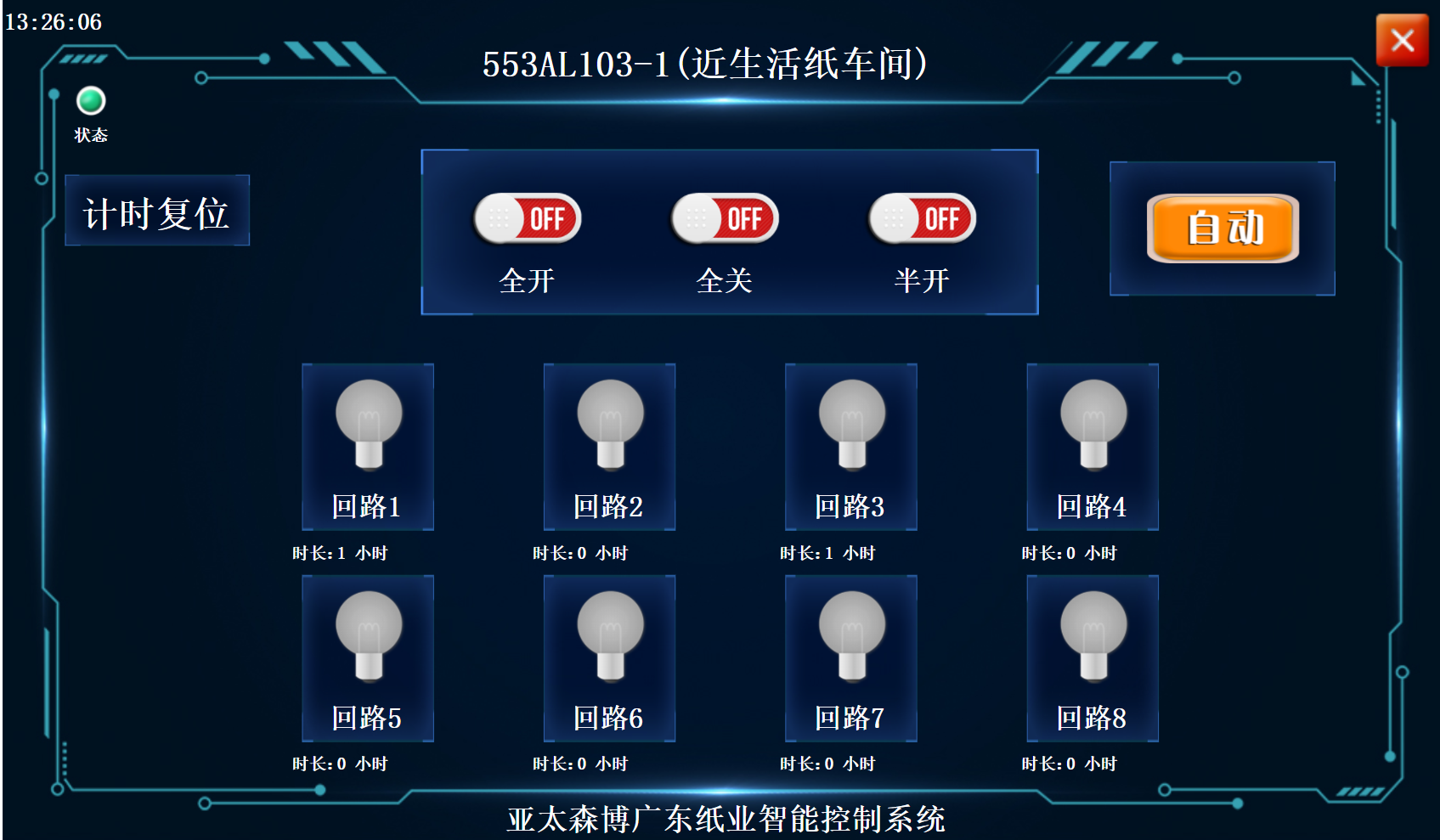

Note: The area where the 553AL103-1 box number is located is (near the living workshop), and you can know the use time of each light through this page, which is convenient for reasonable planning of lamps and extends the service life of lamps. After the user clicks on the bulb, the color changes to green, which means the light is on; Gray represents the closed state.

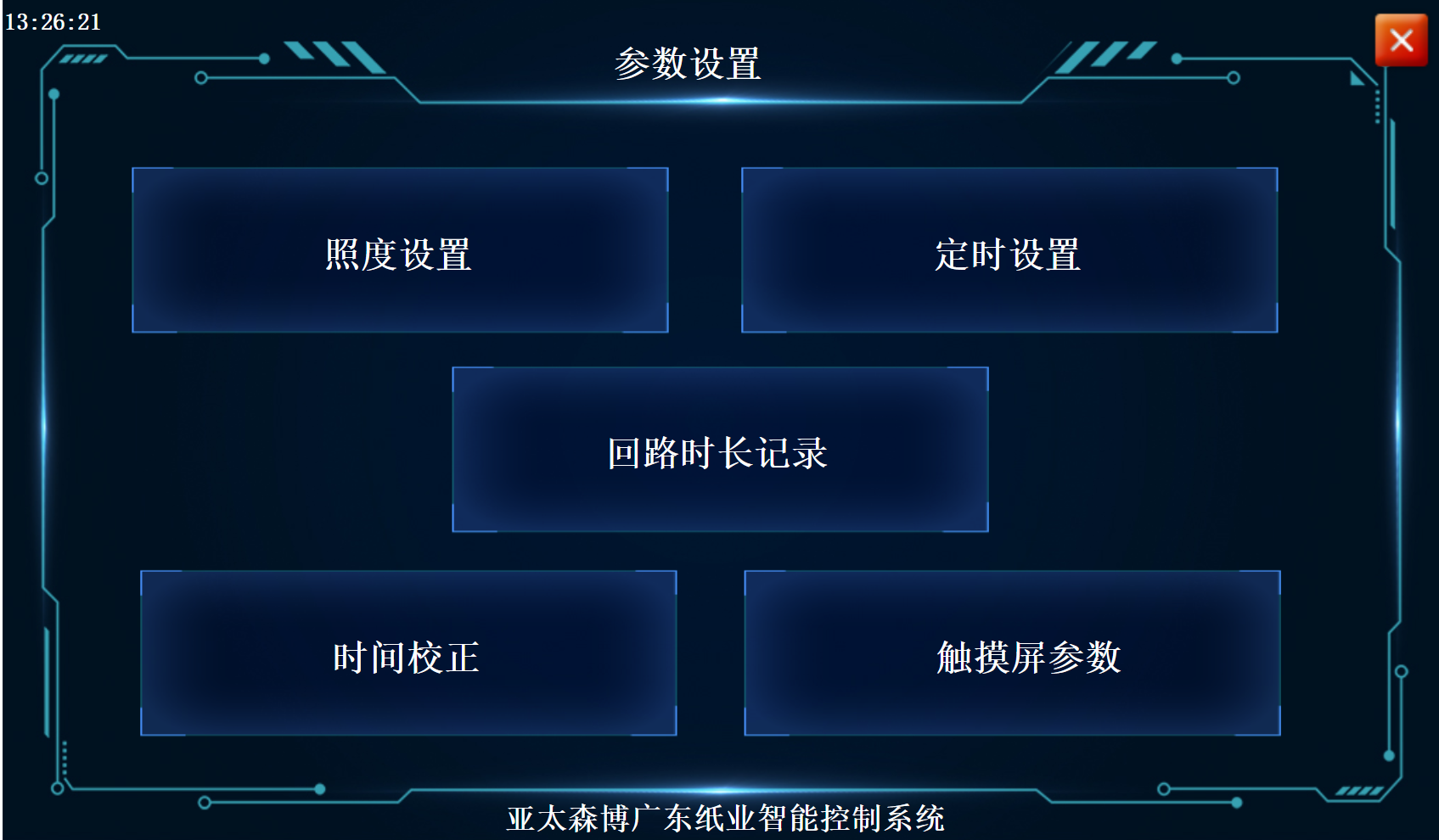

Note: The main page of function parameter settings.

Note: The target setting value on the left is 1000LUX, the current actual illuminance is higher than the target value, the lighting is off, and the lower than the target value is turned on, in order to avoid frequent switching and closing of the light, it is necessary to set a threshold, the current threshold value is 50LUX, and the illuminance sensor is recommended to be installed in the window area to take the outdoor constant light source. If the luminaire supports brightness adjustment, it should be installed inside the workshop.
