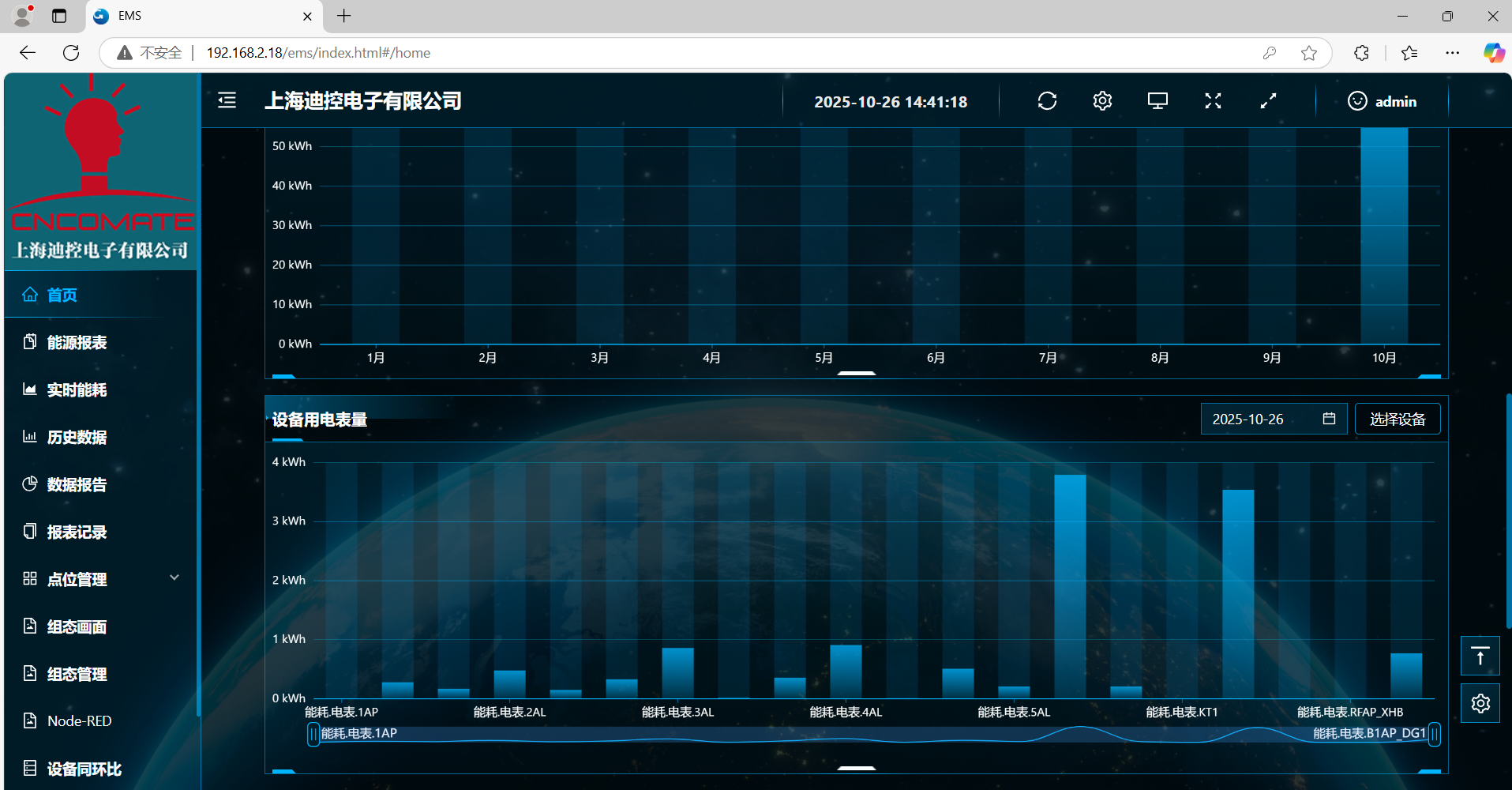

Note: The above figure presents the electricity consumption data of 1AP, 2AL, 3AL and other meters on October 26 in the form of a bar chart.

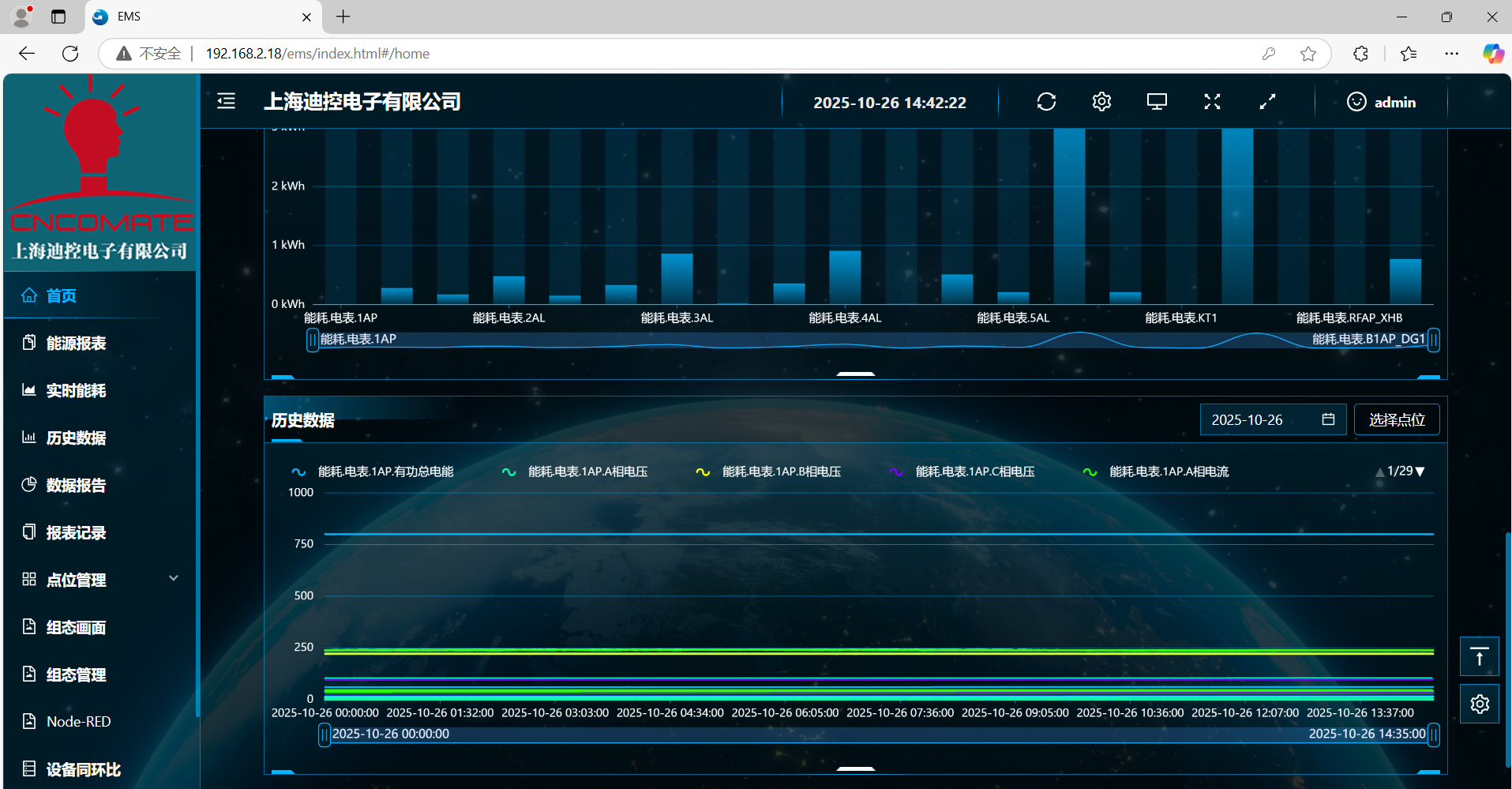

Note: The above figure shows the historical curve of the total active energy, phase A voltage, phase B voltage, phase C voltage, and phase A current of the meter numbered 1AP during the period from 0:00 to 14:35 on October 26.

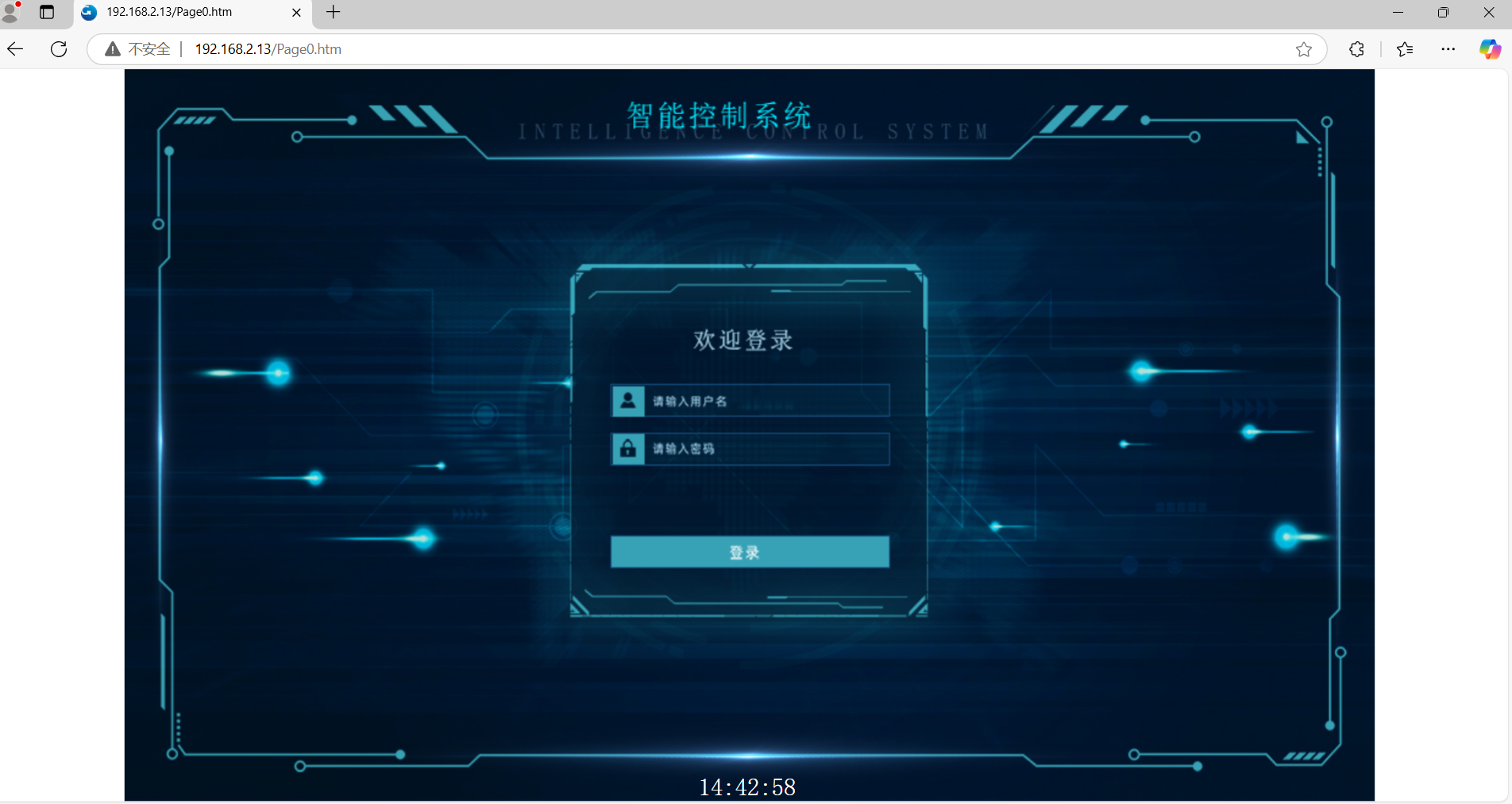

Note: The login page of the lighting and BA system can set multiple users and set different access management permissions.

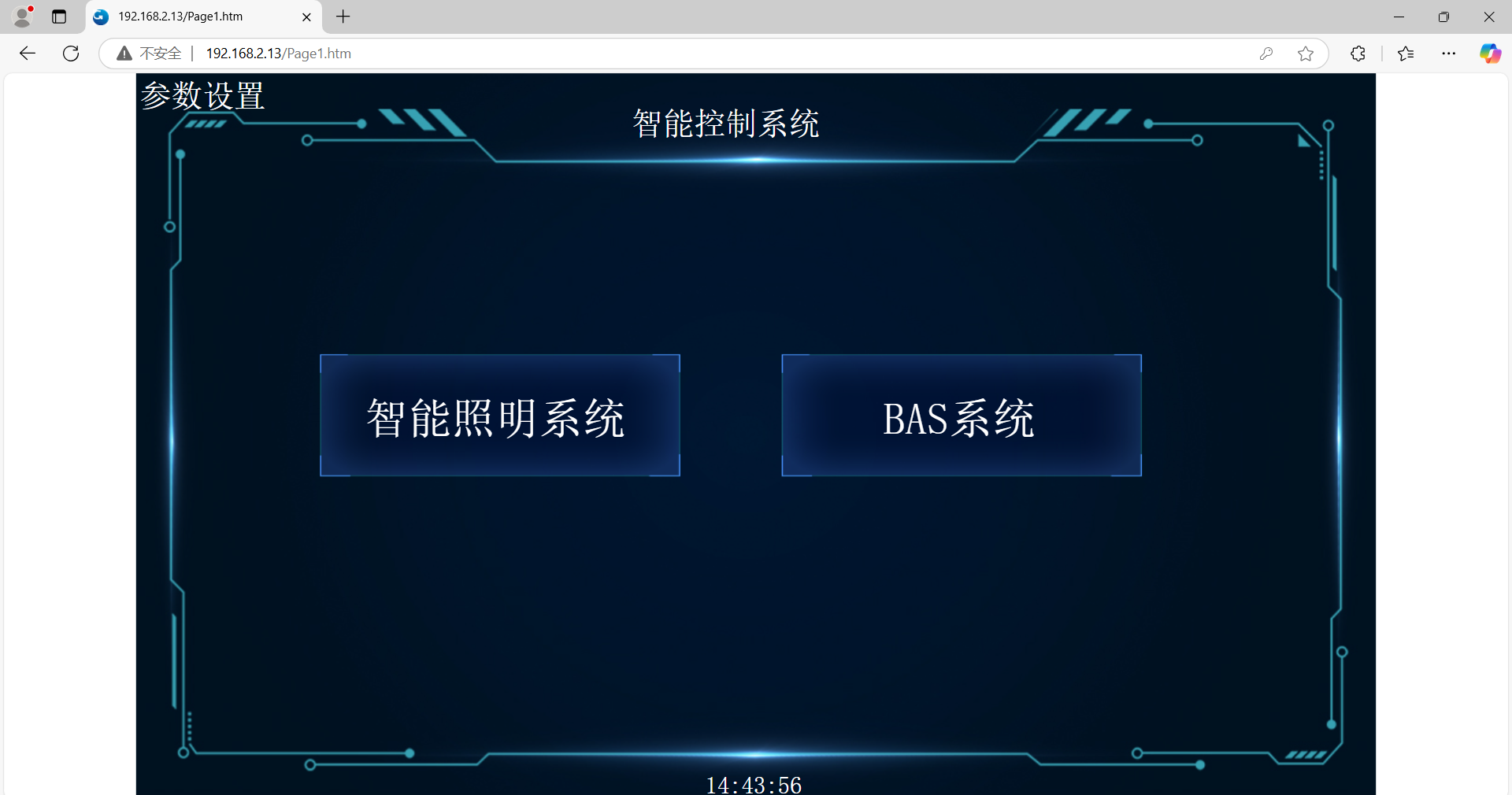

Note: Click on the smart lighting system to go to the lower page

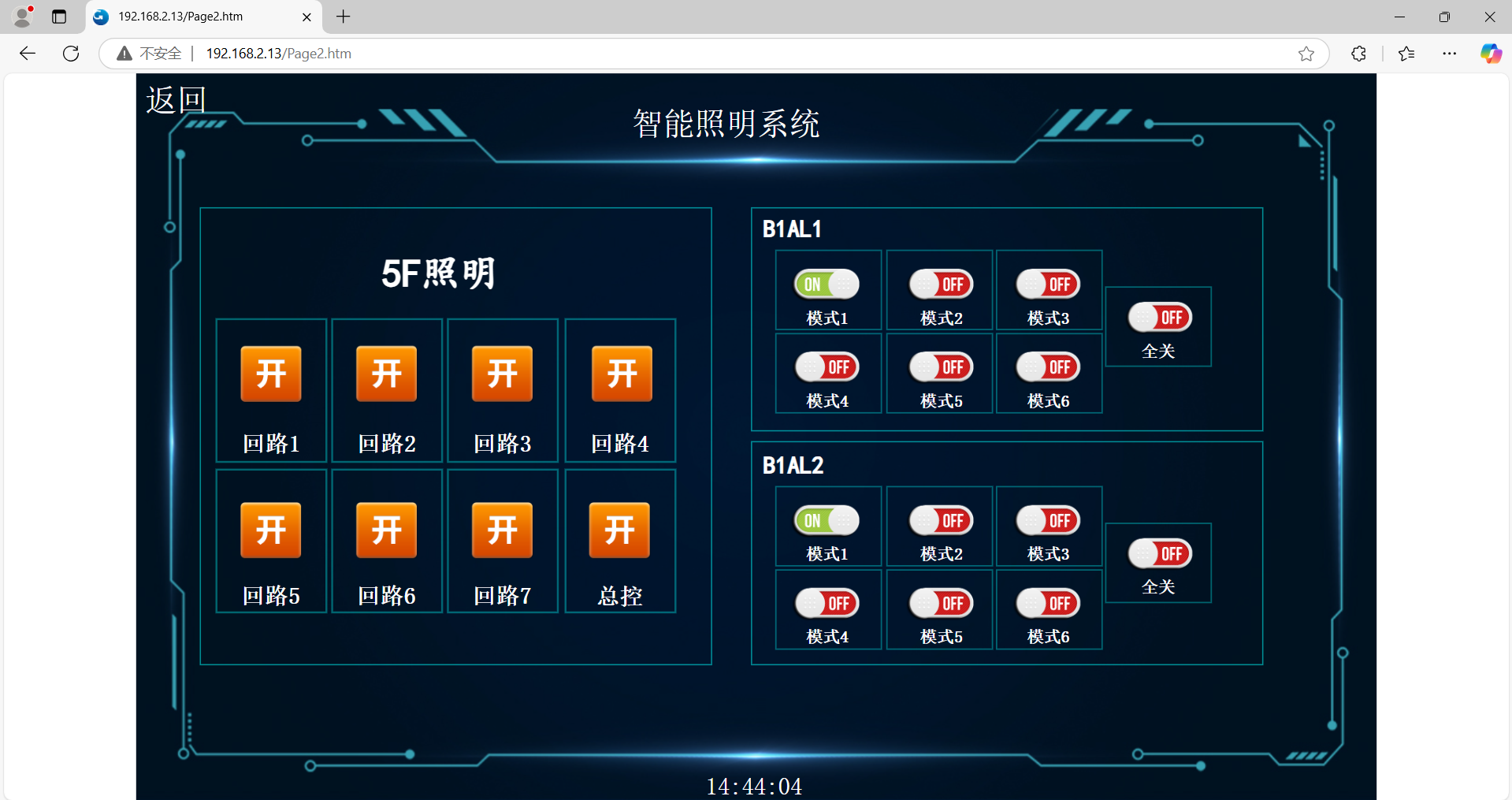

Note: The left side manages the lighting on the 5th floor, there are 7 lighting circuits, which can be switched on and off any circuit, or one-button master control to switch all lighting; The right side manages the basement B1AL1 and B1AL2 two lighting boxes, according to actual needs, you can call any scene mode with one click, the mode name can be changed to energy saving, peak, low peak, etc., each mode can customize to turn on different numbers of lights.

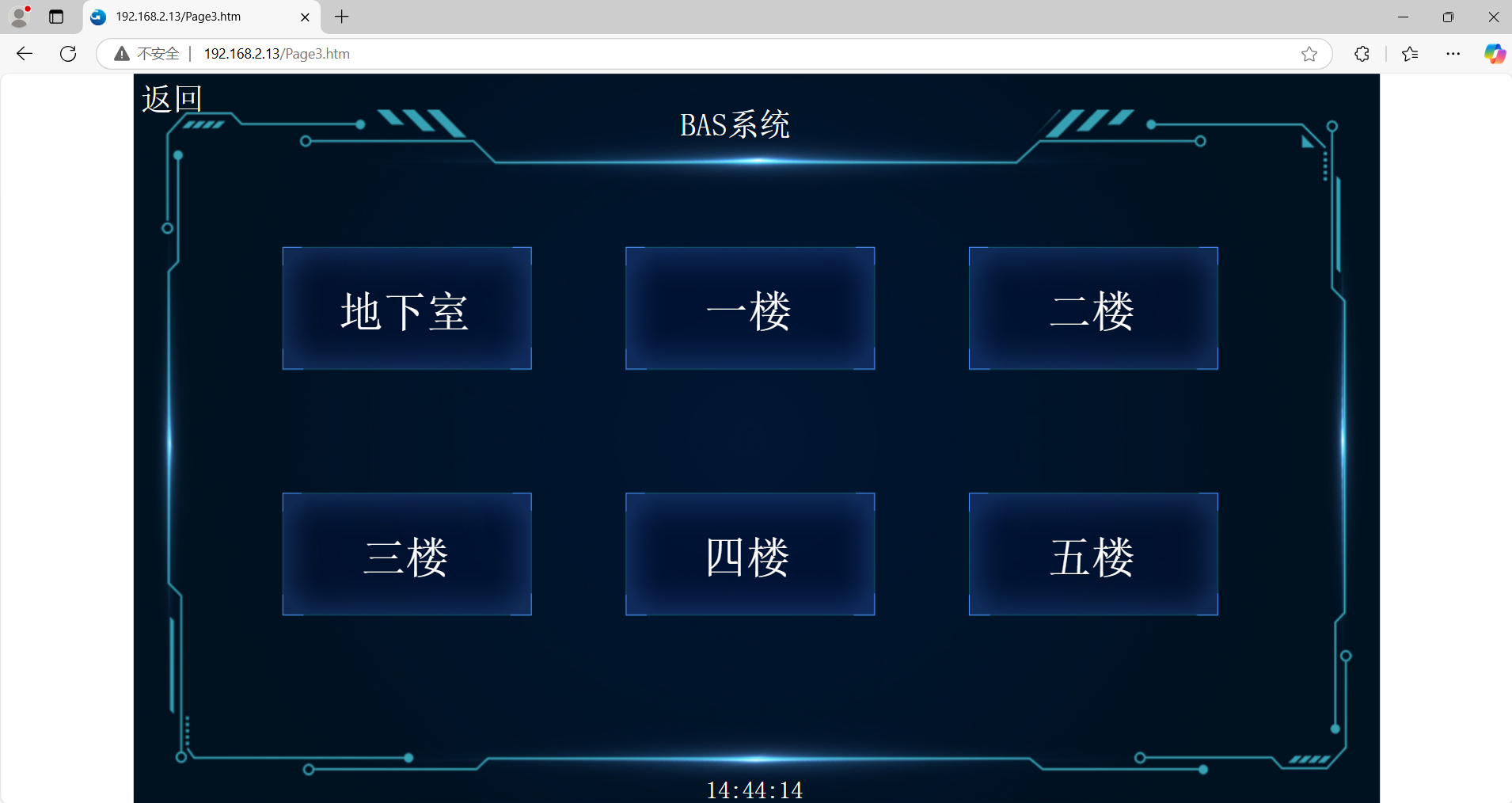

Note: After entering the main page of the BA system, select any area, such as the basement, to enter the following page.

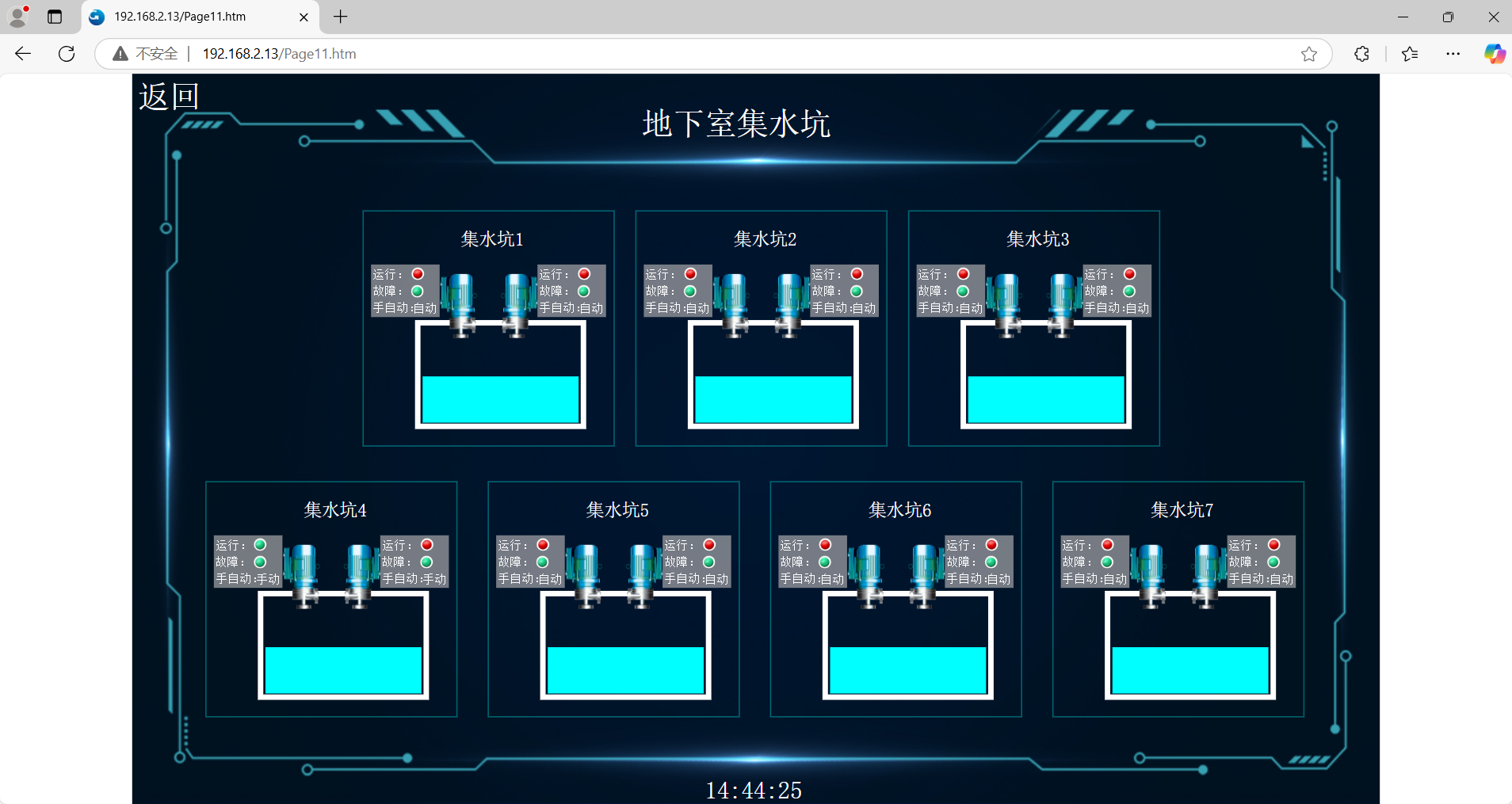

Note: Each sump has two pumps, which can know the operation of the pump, fault and automatic status of the hand, and also know the level of the puddle.

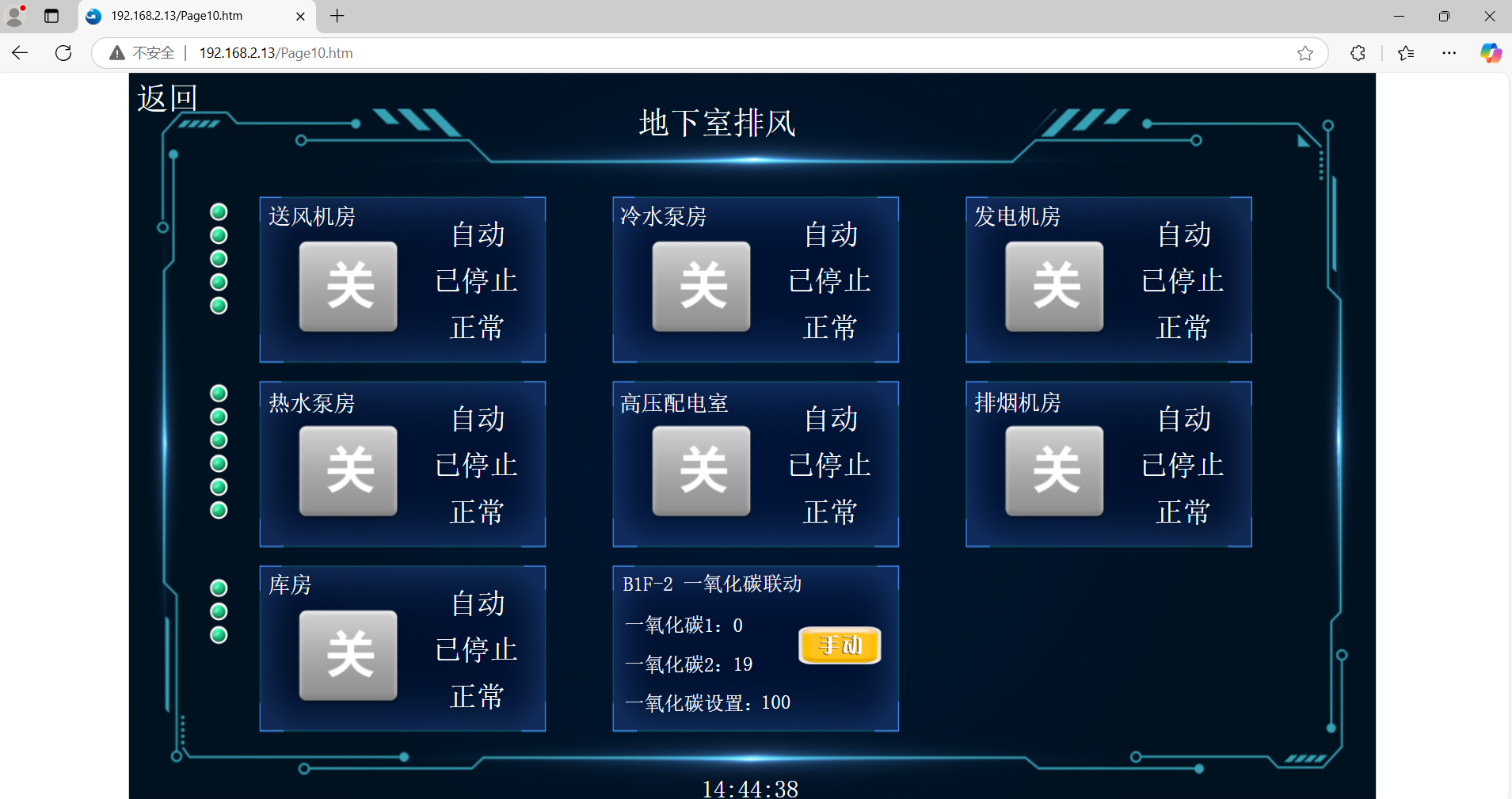

Note: The above figure shows the operating status of the fan in the air supply room, hot water pump room and other areas, and realizes the linkage control with the carbon monoxide concentration value, when the carbon monoxide concentration value exceeds the target value of 100, the feeding and exhaust fan in the corresponding area is automatically started, and when switched to manual mode, the linkage control is canceled.

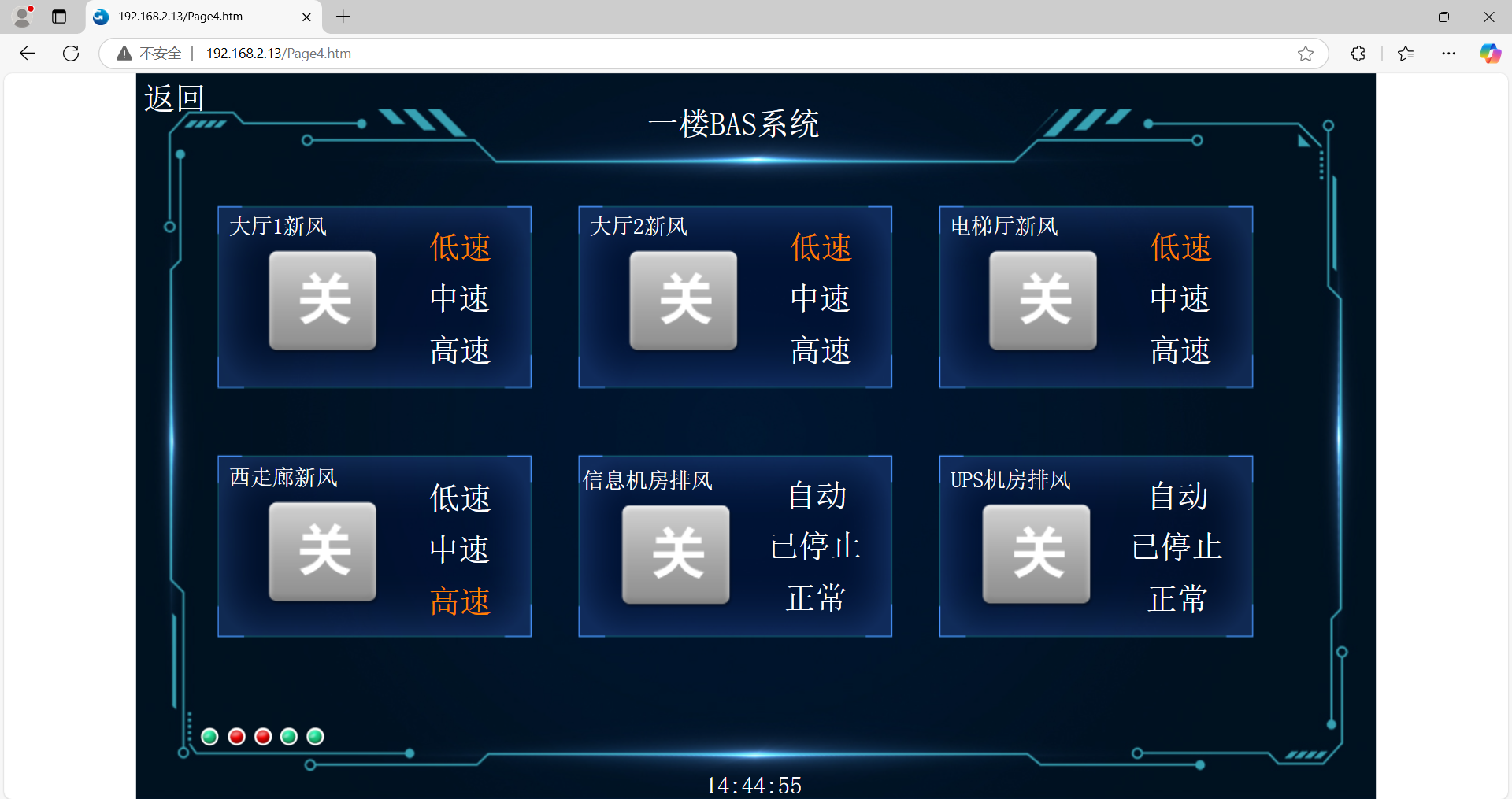

Note: The opening and closing time and running speed of the fan can be set according to the user's needs.
