1. Product introduction
DK2000-I7-1031 Touch screen is Shanghai Di Kong's new generation of HMI man-machine interface, which can support PC, mobile terminal, iPad and other access. With the configuration editing software X2View, the field data can be collected, edited into the configuration screen, and finally displayed on the touch screen to realize real-time data monitoring. At the same time with SMS alarm (optional), email alarm and other functions; It can also be forwarded to BACnet server, Modbus server, OPC UA server, MQTT server. Open HTTP WEB services are integrated by third-party systems.
2. Hardware parameters:
|
Product model: DK2000-I7-1031 |
WEB configuration software: X2View |
|
Processor: 4 cores 1.2GHZ |
Power supply: AC/DC 12 to 24V |
|
Flash: 8GB |
Memory: DDR3 1G |
|
System: LINUX |
Resolution: 1024*600 |
|
Network port/serial port: One network port, three RS485 serial ports, and one 232 serial port |
Monitor: 7 "TFT |
|
Size of cabinet door mounting holes: 180x114mm |
Touch type: capacitive |
|
Material: aluminum alloy front shell, sheet metal back shell |
Temperature: -20 ~ 60℃(working) --40 ~ 60℃ storage and transportation) |
|
Power consumption: ≤8W |
Weight: 650g |
|
Network: A high-performance 100M/10M Ethernet port supporting AUTO MDI/MDIX |
Humidity: 10% ~ 90% no condensation (working) 15% ~ 95% no condensation (storage and transportation) |
|
Protection class: Front panel meets IP65, rear fuselage shell meets IP20. |
Wall mounting hole size: length 210x height 158x depth 40mm |
3. Software features:
Green installation free, support multi-language intelligent management,
Support PC, mobile phone, iPad and other monitoring, strong operability
Holding nearly 200 protocols to collect and convert to BACnet server, Modbus server, OPC UA server, MQTT server
JS script support, logic control
Support for COV subscription
BBMD access across network segments is supported
History storage support
Support linear conversion, take bit, high and low byte conversion
Supports the internal variable function
Check the offline status of devices. Multiple users can be configured to help manage devices
Support LAN, easy to achieve remote monitoring of touch screen
Supports various forms of timing and event triggering, and provides custom functions to facilitate application expansion
Support SMS (optional), email, nail and other means to send alarm information
4.. Physical diagram of system architecture
5. Wide range of application fields:

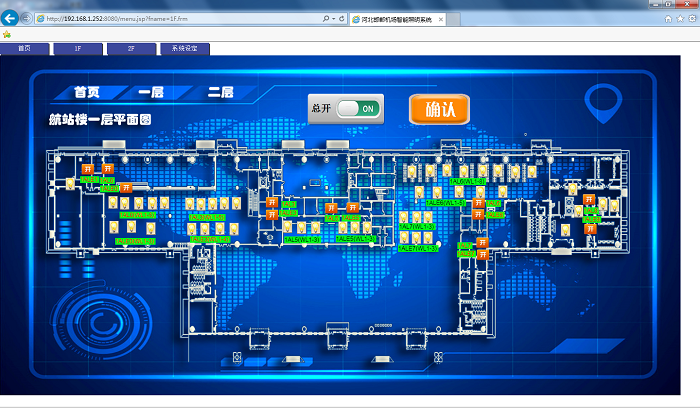

6. Intelligent lighting configuration management interface (mobile phone and computer terminal access management)
Note: The above configuration interface is customized according to each project, which is made by professional artists and debugging engineers of Shanghai Di Kong.
